Custom SIEM + Sentinel BAS

A detection-and-response platform built from scratch in Python, paired with Sentinel BAS, a breach-and-attack-simulation engine that runs Atomic Red Team techniques against the live lab and checks which detections actually fire.

Role
Design, engineering and validation
Year
2026
Status
Public, MIT license
Code
GitHub repository

What the validation found

In a recorded run of ten Atomic Red Team tests, seven techniques were detected and three were missed. This measures the tested lab scenarios, not overall ATT&CK coverage. One miss exposed a parser field that a Kerberoasting rule needed but never received.

Detection rules
35
Techniques detected in the recorded lab run
7/10
Attack-chain correlation window
60 min
Built-in threat hunts
8

Overview

Problem

A detection rule that looks correct in review can still be unable to fire: a parser can drop the field it depends on, or the telemetry can be polluted. Without running real attack techniques against the pipeline, detection coverage is an assumption.

What I built

Mini SIEM, a detection-and-response platform written from scratch in Python, with multi-source ingestion, 35 detection rules, a Sigma engine, attack-chain correlation, case management, threat hunting and analyst-approved SOAR.

Alongside it, Sentinel BAS drives Atomic Red Team techniques against the live lab and classifies each one as Detected, Delayed or Missed.

Why it matters

The first validation run exposed defects that rule review had missed. The Kerberoasting rule was structurally unable to fire because TicketEncryptionType was never extracted, and the log forwarder was polluting telemetry with its own noise.

Recorded lab study · 2026 Source reviewed:

Case-study summary

Problem
Validate whether controlled attack simulations generate the expected SIEM alerts.
Architecture
Windows/Linux collectors → Python/Flask → SQLite → Sigma, correlation and guarded SOAR.
My contribution
Built the SIEM, Sentinel BAS simulations and alert-to-test matching.
Tests
Recorded ten Atomic Red Team tests; matched alerts by technique, host and time.
Outcome
Seven simulations produced matching alerts; three did not. A missing parser field explained the Kerberoasting miss.
Limitations
Single-host test scope, simplified Sigma and no claim of overall ATT&CK or production coverage.

Project evidence

Architecture

Telemetry flows through one pipeline, from collection to response, and Sentinel BAS closes the loop by testing it with real techniques.

  1. CollectWindows Event Log, Sysmon, Linux syslog, remote forwarder
  2. StoreSQLite with parameterized queries
  3. Detect35 rules, Sigma engine, IOC watchlist, auto ATT&CK tags
  4. Correlate3+ rule types, same user or IP, 60 min
  5. RespondCases and SOAR with analyst approval
  6. ValidateSentinel BAS replays Atomic Red Team

Ingestion

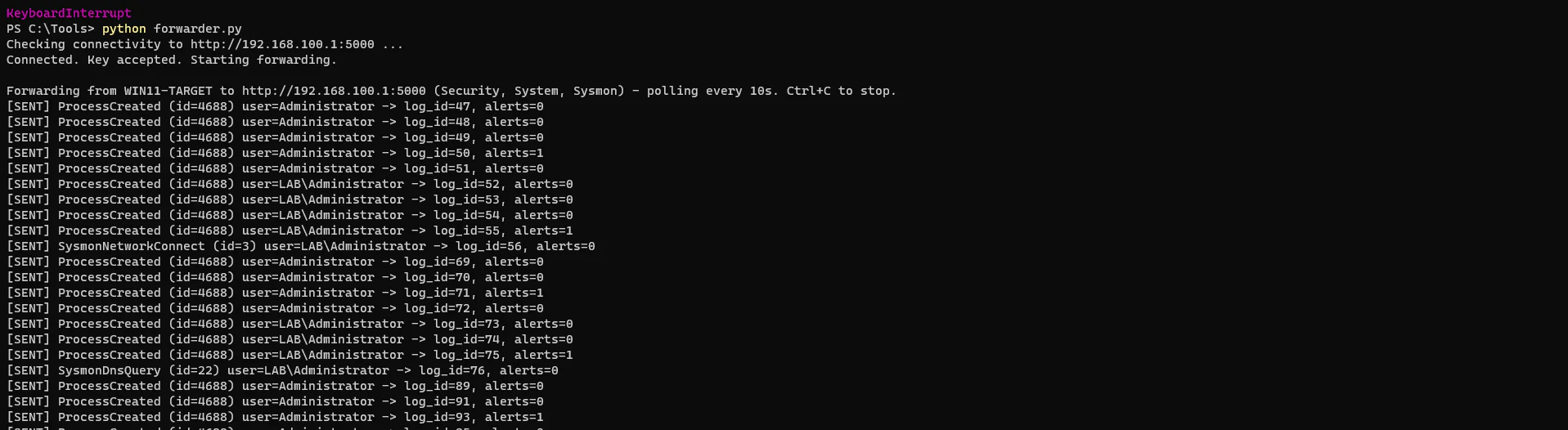

Windows Security and System logs, Sysmon (process create, process access, injection, DNS query) and Linux syslog (SSH, sudo, su, useradd/usermod). Remote Windows hosts ship events through a forwarder agent built on Get-WinEvent.

Investigation

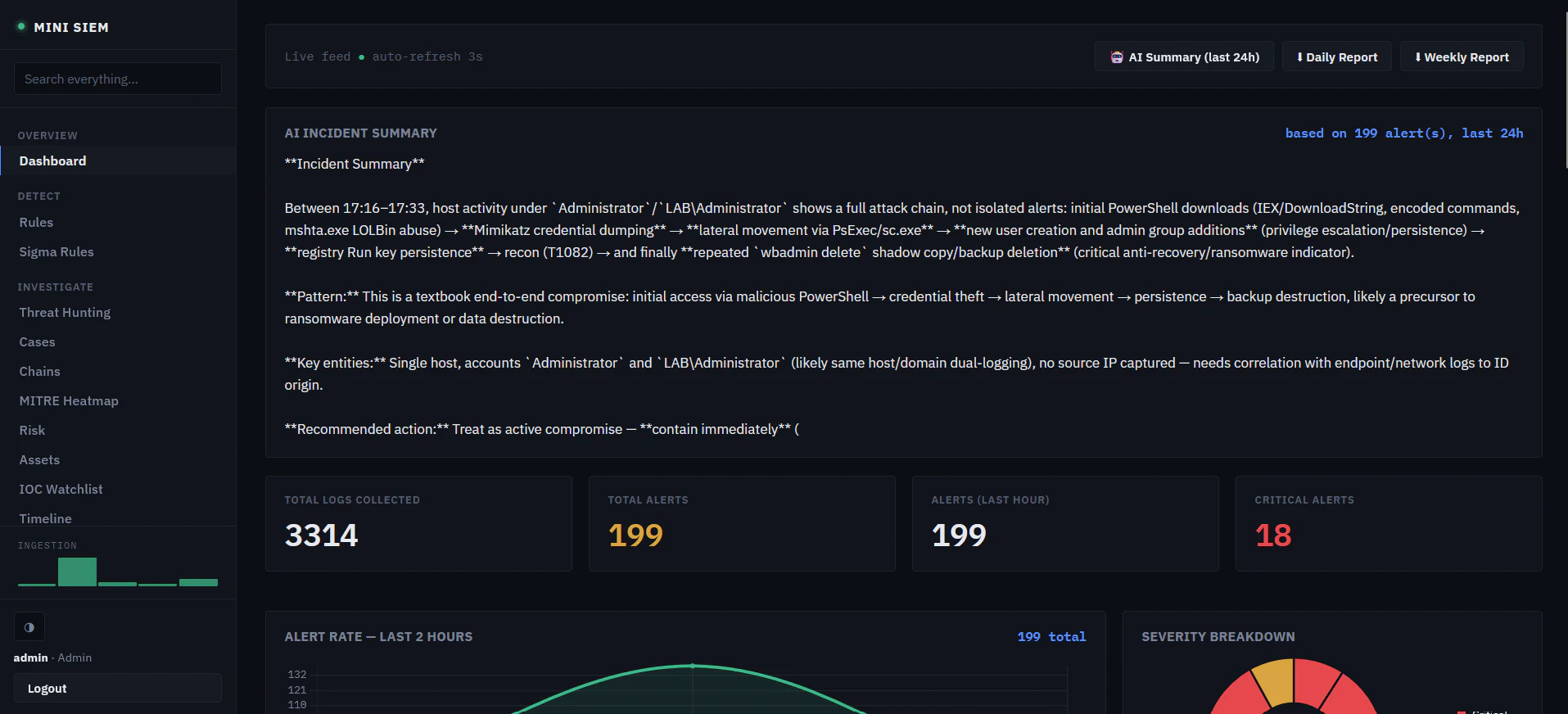

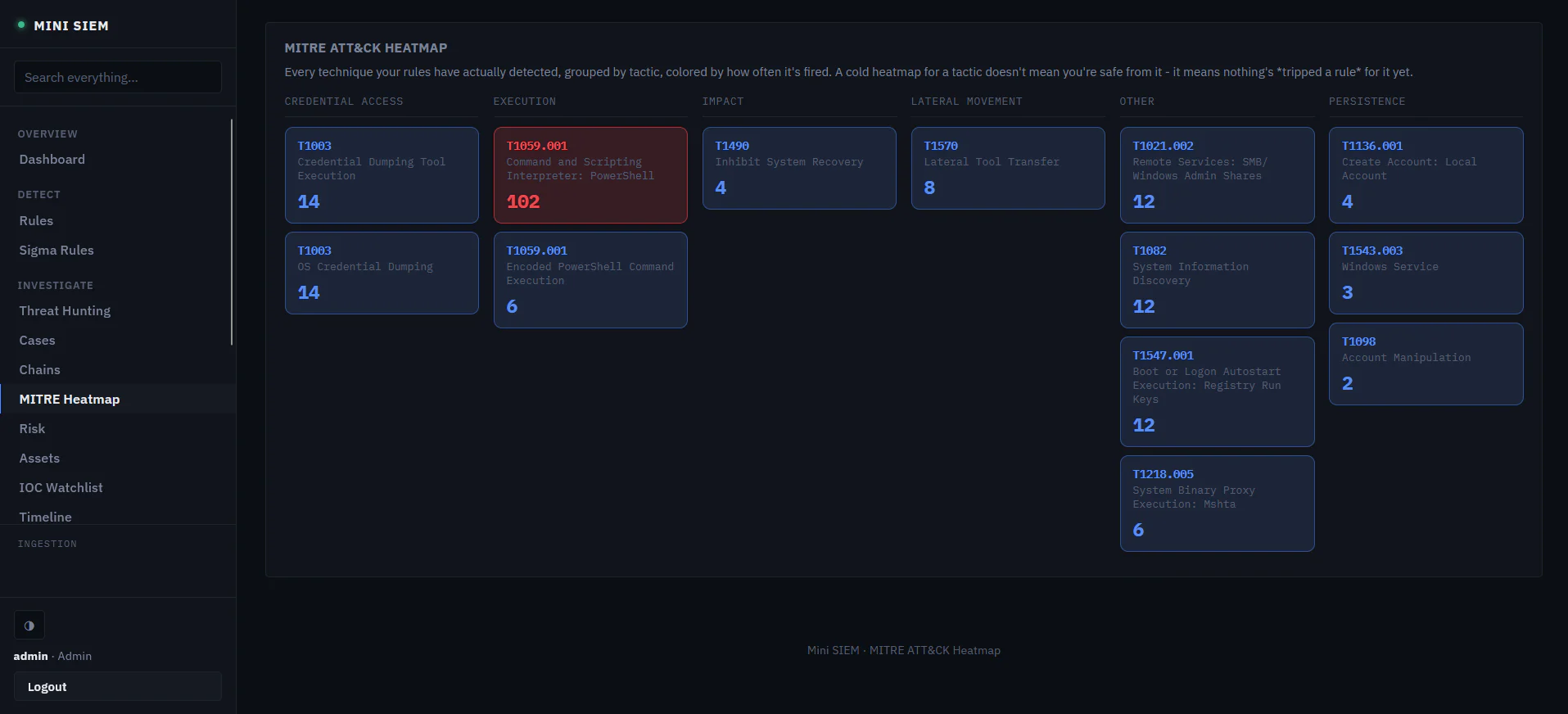

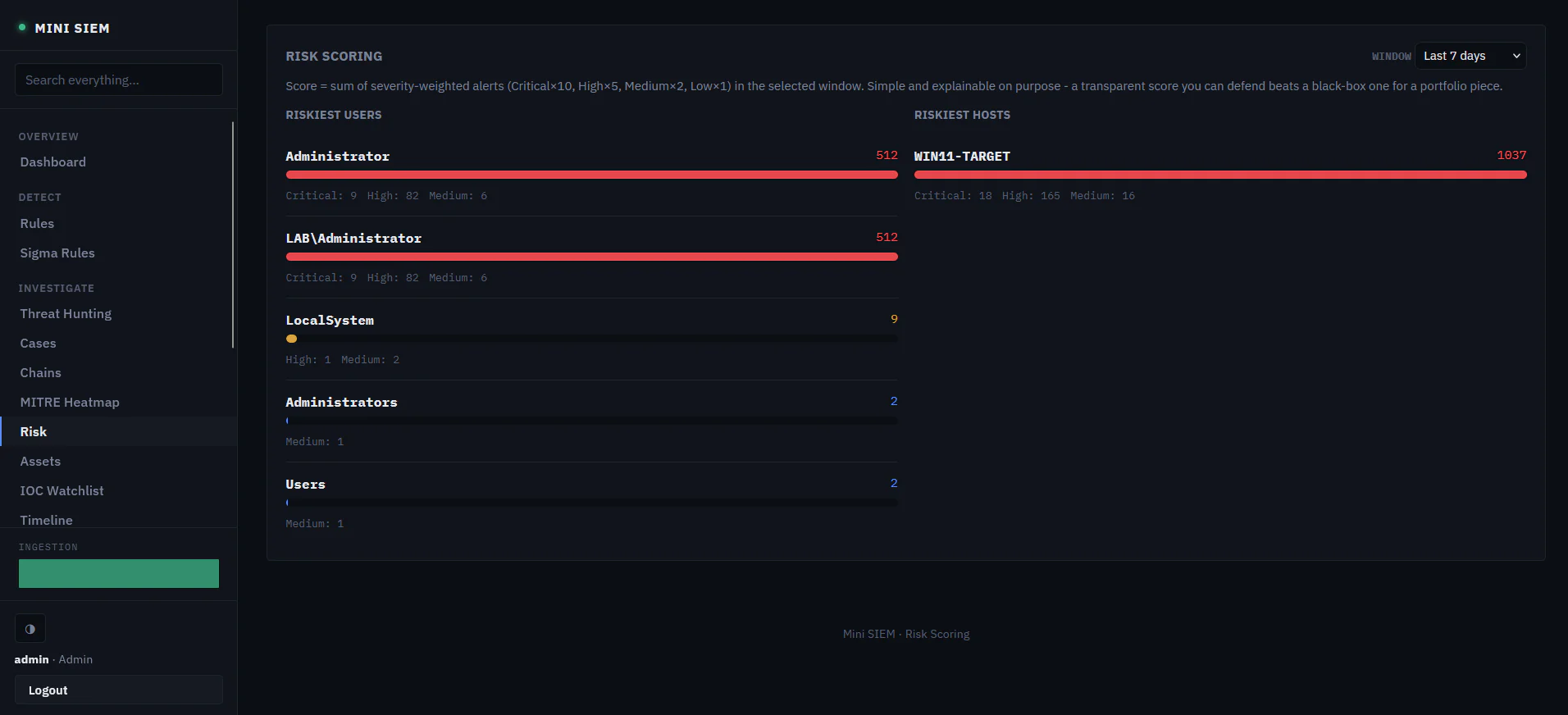

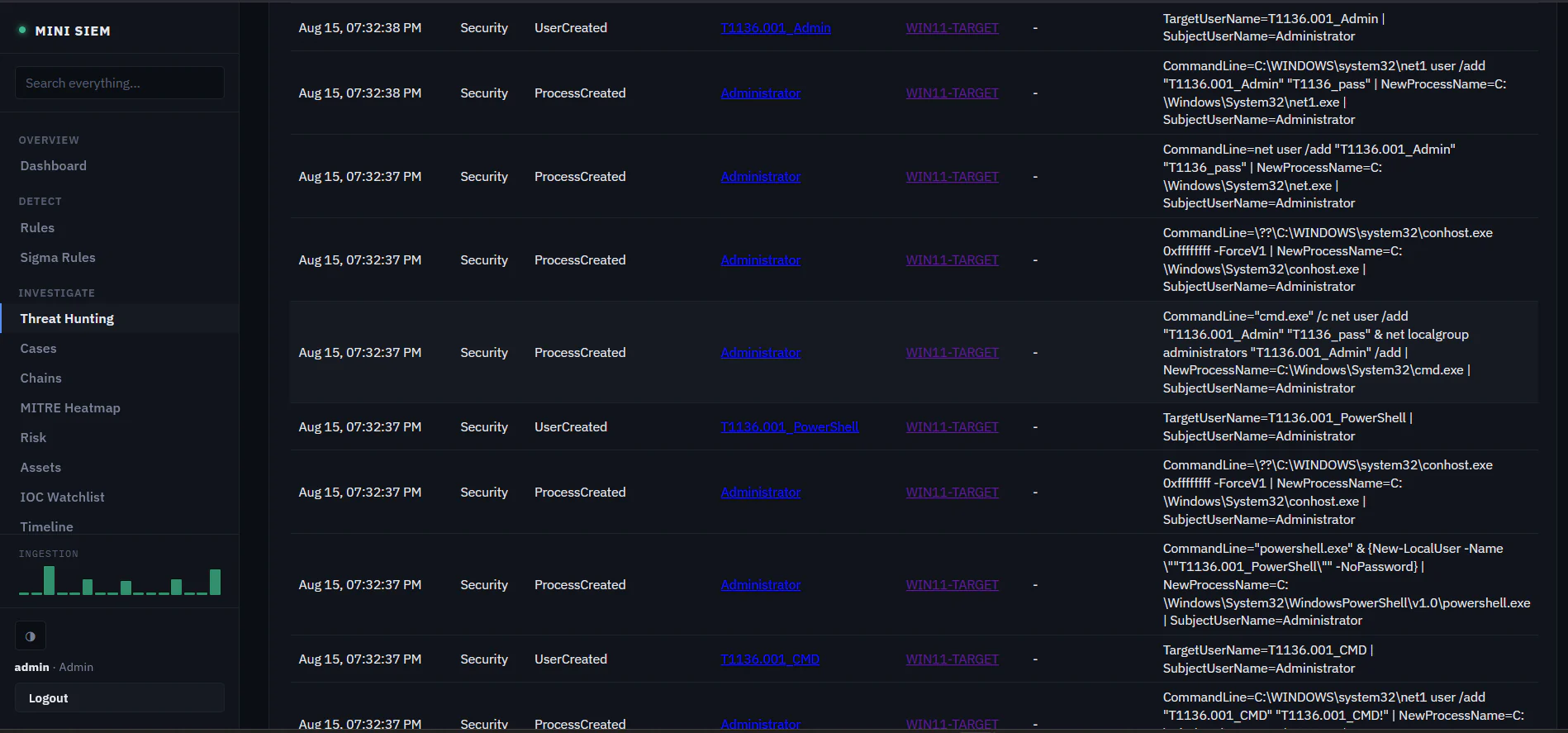

Incidents become numbered cases with evidence, assignment and resolution tracking. Analysts get a threat-hunting query language with 8 built-in saved hunts, a MITRE ATT&CK heatmap, timelines, risk context and AI-assisted incident summaries.

Response

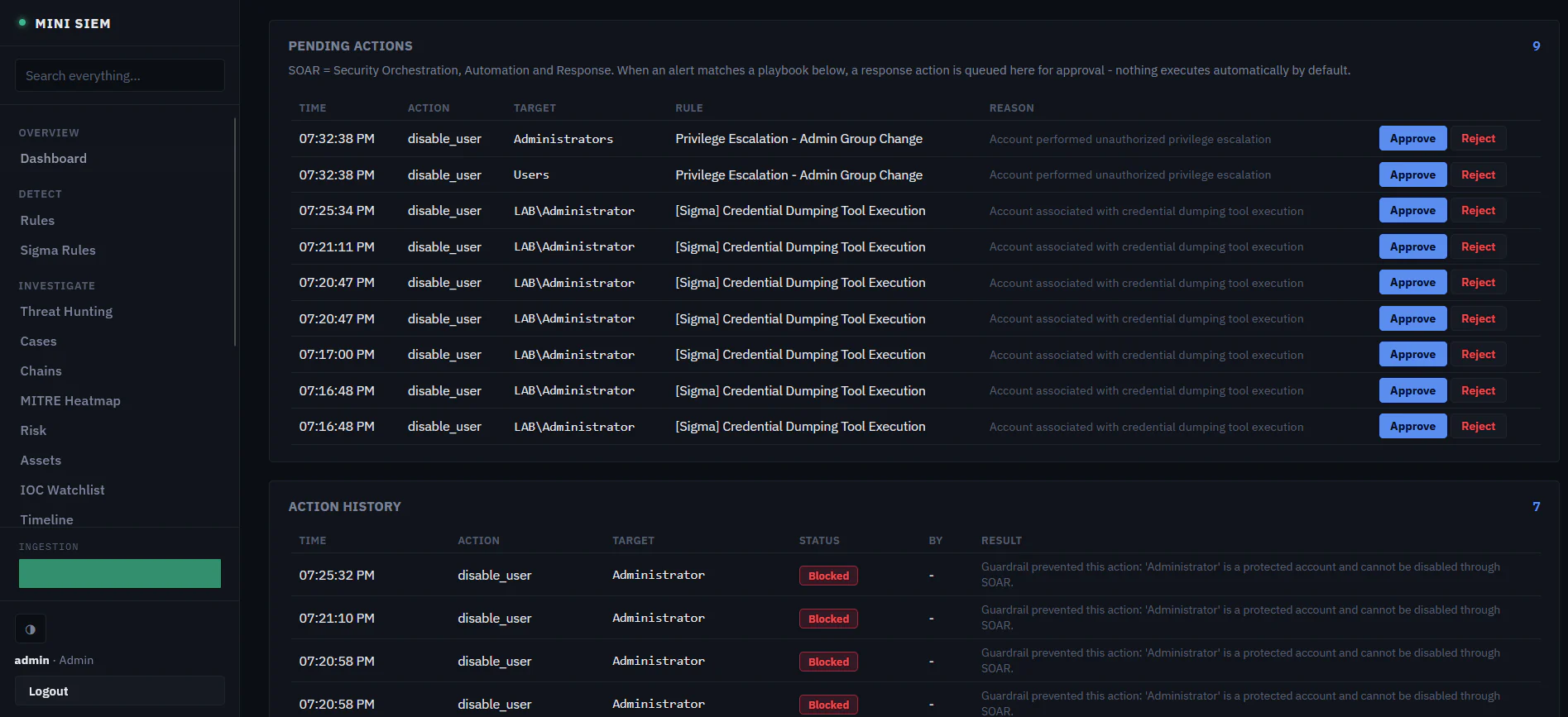

SOAR playbooks queue response actions behind analyst approval gates, so nothing destructive runs automatically.

Deployment

A standalone Windows executable (PyInstaller + waitress), a hosted Linux mode (gunicorn), and a public demo mode that disables the ingest endpoint entirely.

Known limits

SQLite isn't built for high-volume concurrent ingestion, it's a single node, it serves HTTP rather than HTTPS, and the Sigma engine covers common patterns rather than the full specification. These are documented in the repository.

Stack

  • Python
  • Flask
  • SQLite
  • PyYAML (Sigma)
  • Chart.js
  • reportlab
  • Vanilla JavaScript

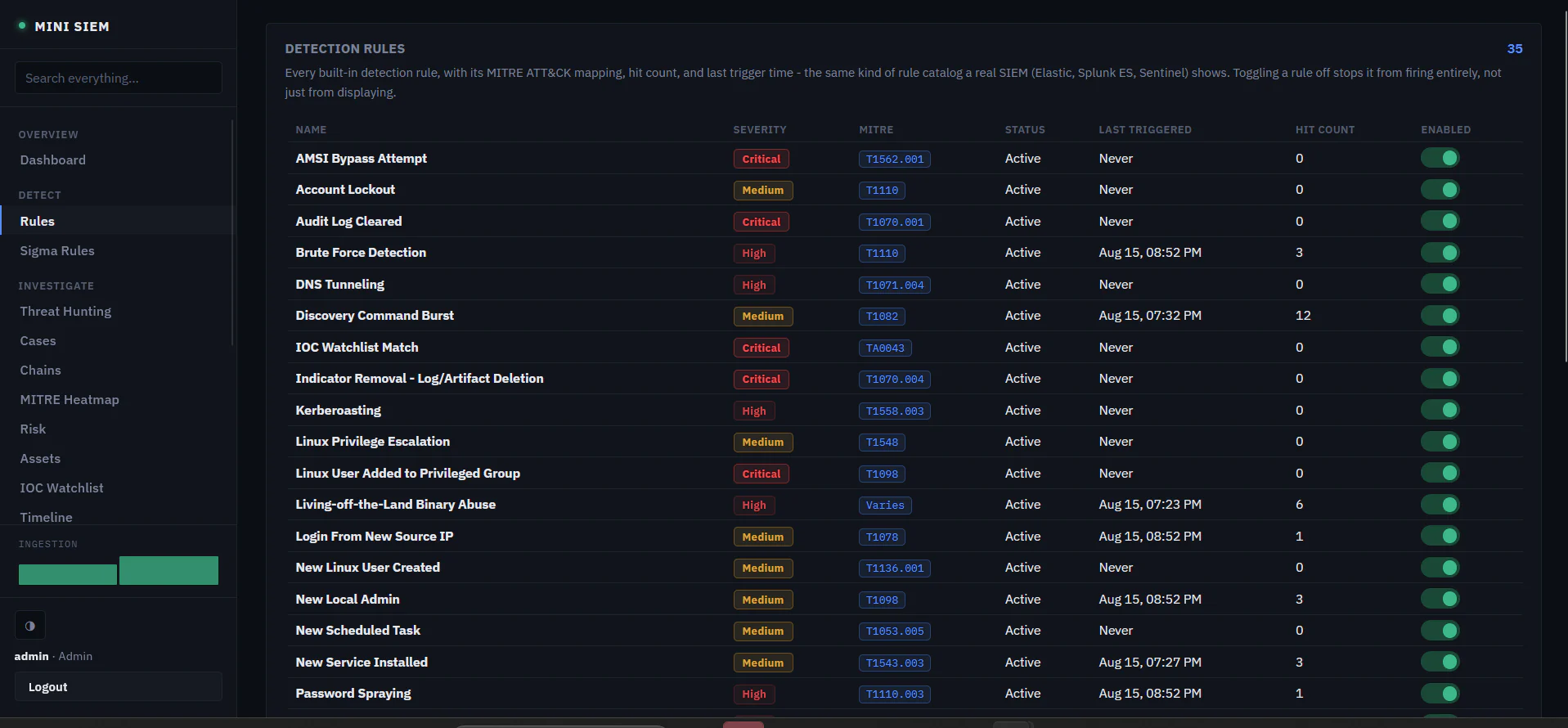

Detection

Thirty-five rules across Windows, Sysmon, Linux and behavioral analytics. Every alert is tagged with MITRE ATT&CK automatically.

Rule coverage by category
CategoryRulesExamples
Windows core11Brute force, password spraying, audit log cleared, new service, Kerberoasting
Advanced Windows / Sysmon7Office spawning a shell, AMSI bypass, LSASS access, CreateRemoteThread injection, DNS tunneling
Discovery, lateral movement, persistence8LOLBin abuse, Run key persistence, remote service execution, shadow copy deletion
Linux5SSH brute force, suspicious sudo, new user, added to a privileged group
Behavioral2Unusual login hour, new source IP
Platform security1Brute force against the SIEM's own login
IOC watchlist1Matches events against known indicators

A Sigma rule from the repository

The Sigma engine loads YAML rules with common single and multi-selection AND/OR conditions. This one catches well-known credential-dumping tools.

title: Credential Dumping Tool Execution
status: stable
logsource:
  category: process_creation
detection:
  selection:
    EventID: 4688
    CommandLine:
      - '*mimikatz*'
      - '*sekurlsa*'
      - '*lsadump*'
  condition: selection
level: critical
tags:
  - attack.credential_access
  - attack.t1003

All Sigma rules on GitHub

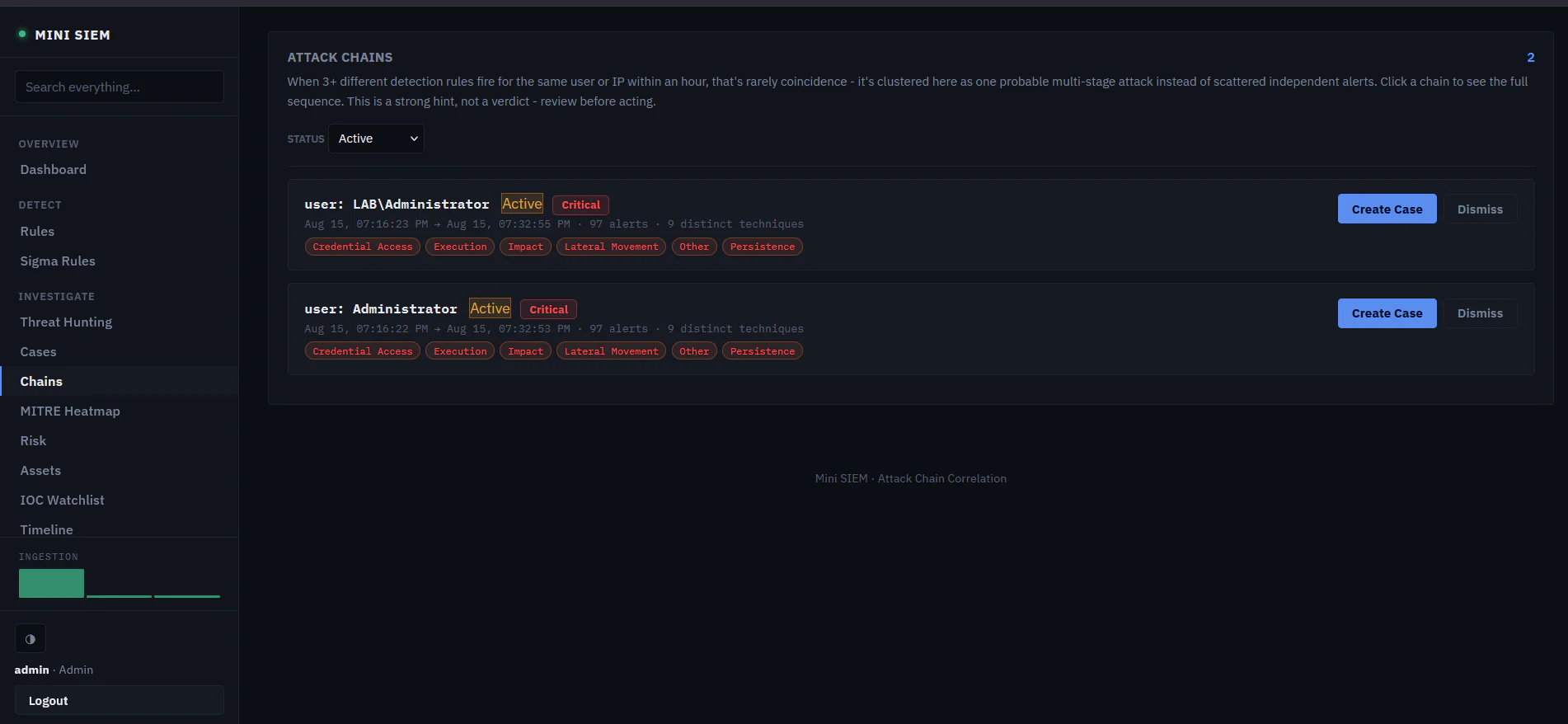

Attack-chain correlation

When three or more distinct rule types fire for the same user or source IP within 60 minutes, the alerts are clustered into a single incident automatically, so an analyst sees one attack chain instead of a dozen disconnected alerts.

Validation

Sentinel BAS turns “these rules should work” into a measured coverage report.

Method

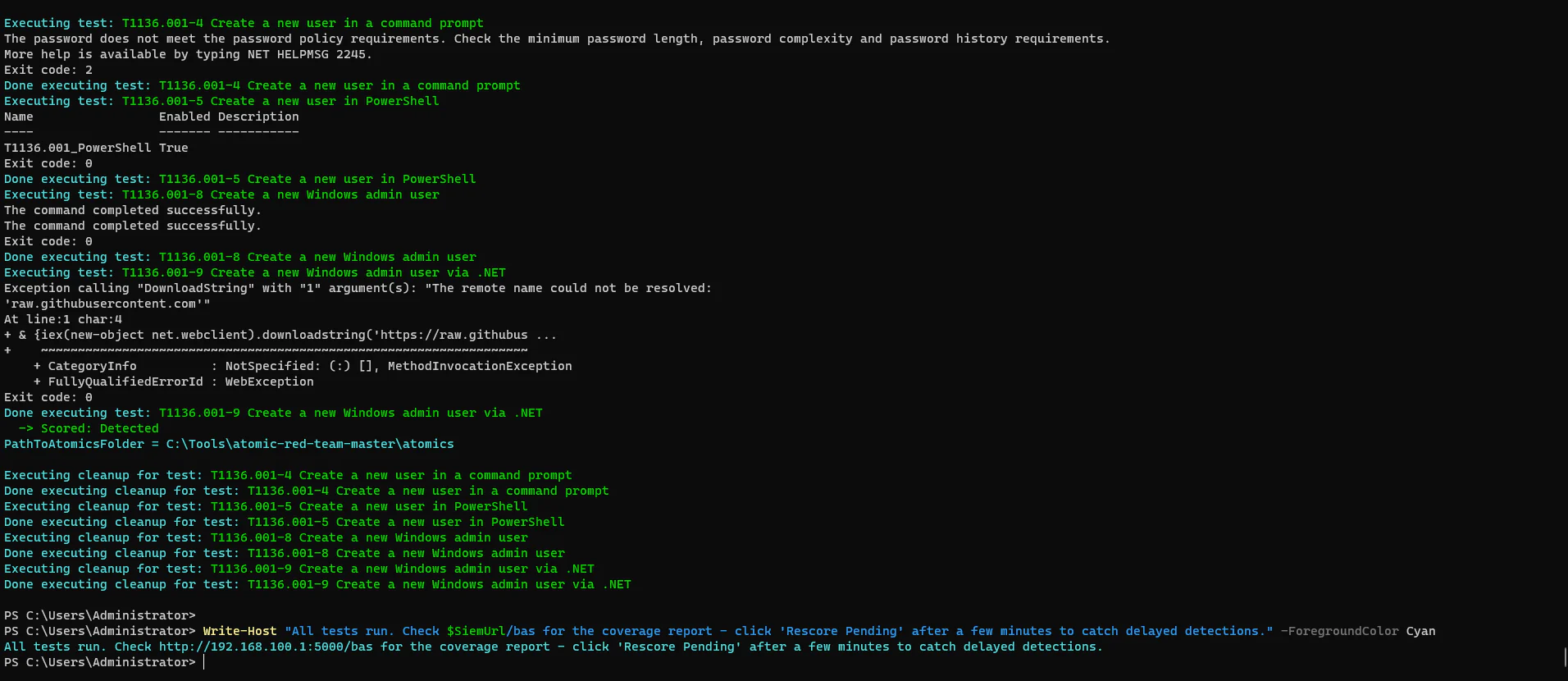

  1. ExecuteRun an Atomic Red Team technique on the lab host
  2. CollectGather the alerts the SIEM raised
  3. MatchBy ATT&CK technique, host and timing
  4. ClassifyDetected within 60 s, delayed within 5 min, otherwise missed

Technique matching is hierarchy-aware: a test for T1003 correctly credits an alert tagged T1003.001.

Results by technique

No technique was delayed or left pending.

Test runs against the lab host WIN11-TARGET
TechniqueAtomic testResultLatency
T1003.001 LSASS memoryDump LSASS memoryDetected0 s
T1059.001 PowerShellEncoded PowerShell commandDetected0 s
T1136.001 Local accountCreate a new local userDetected0 s
T1490 Inhibit system recoveryDelete volume shadow copiesDetected0 s
T1547.001 Registry Run keysRegistry Run key persistenceDetected0 s
T1543.003 Windows serviceInstall a new serviceDetected4 s
T1082 System information discoveryDiscovery command burstDetected21 s
T1558.003 KerberoastingRequest SPN ticketsMissedNo alert
T1070.001 Clear Windows event logsClear the Security event logMissedNo alert
T1053.005 Scheduled taskCreate a scheduled taskMissedNo alert

What the misses revealed

  • A rule that could never fire

    The Kerberoasting rule depended on TicketEncryptionType, which the pipeline never extracted, so the rule was structurally unable to fire. Rule review hadn't caught it.

  • Polluted telemetry

    The remote forwarder was generating its own noise inside the telemetry it shipped.

Security

A SIEM holds sensitive telemetry, so the platform itself was hardened and audited.

  • Stored XSS found and fixed

    A dedicated XSS audit found a real stored XSS: Sigma rule titles were rendered unescaped. Fixed, with Jinja2 autoescaping throughout.

  • Sessions and secrets

    Secrets come from the environment, passwords are hashed and sessions are server-side. Cookies are HttpOnly, SameSite=Lax, Secure when enabled, with an 8-hour lifetime.

  • Access control

    Role-based access for Viewer, Analyst and Admin, plus a login lockout after 5 failures in 15 minutes.

  • Security headers

    CSP, X-Frame-Options, nosniff, Referrer-Policy, Permissions-Policy and HSTS on every response.

  • Injection defenses

    Parameterized SQL and enumerated input validation.

  • Dependency scanning

    Flask 3.0.3 to 3.1.3 (PYSEC-2026-2151) and requests 2.32.3 to 2.32.4 / 2.33.0 (PYSEC-2026-1872, PYSEC-2026-2275).

Documented trade-off: someone who knows a valid username could deliberately trigger the lockout.
